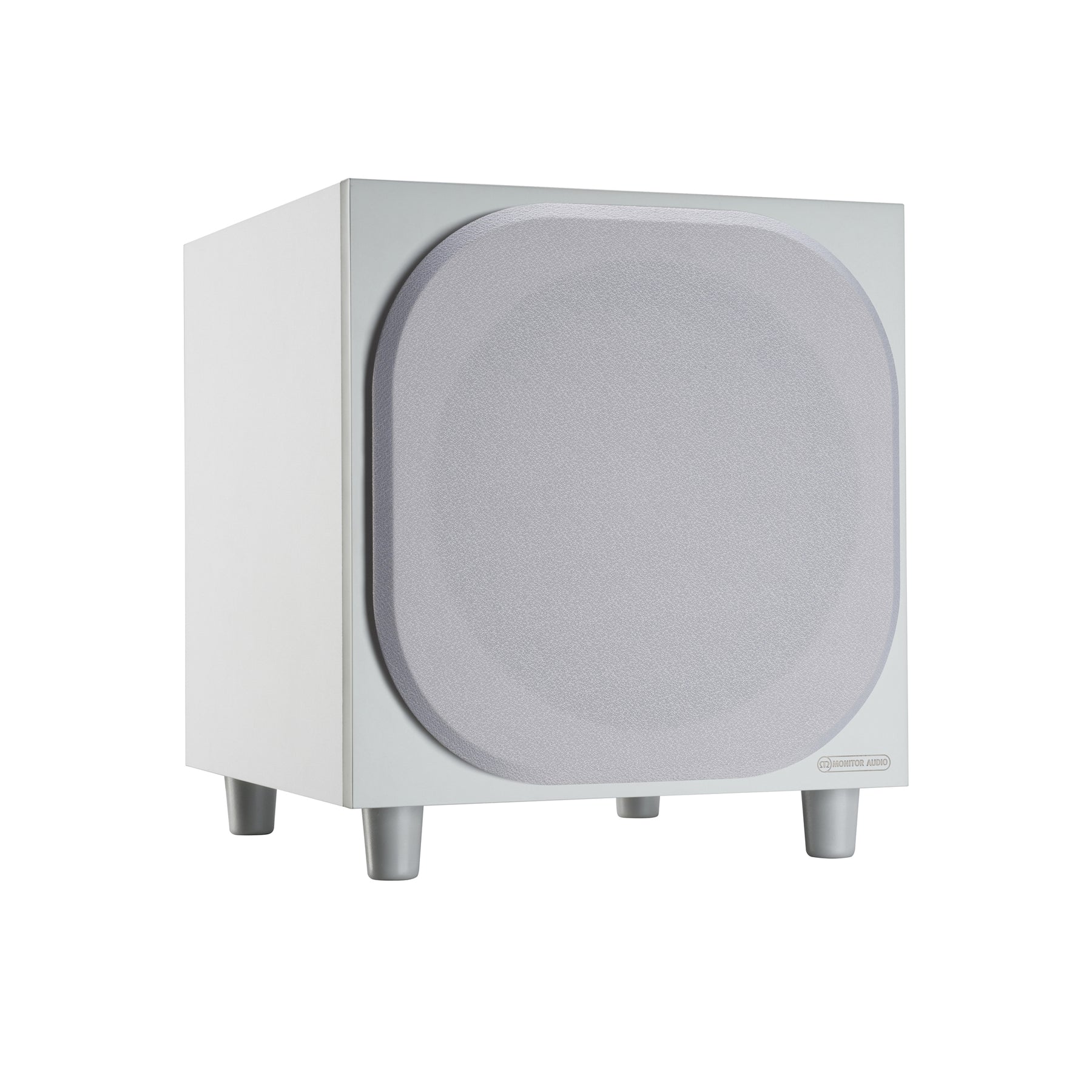

Monitor Audio Bronze W10 (6G) Subwoofer

$1,499.00

Description The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance. Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drumsand explosions now have much more punch and...

BlackBlack
WhiteWhite
WalnutWalnut
Description

Description

The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.

Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drumsand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.

The Bronze W10 is a stunning addition to any room.






Key Features

  • Long-throw 10" (250 mm) driver featuring ‘dished’ C-CAM
  • 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
  • Class D amplifier with high current Switch Mode Power Supply (SMPSU)

Specifications

System Format

Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction

Lower Frequency Limit

34 Hz (-6 dB)

Upper Frequency Limit

50 – 120 Hz with 24 dB/Octave

Drive Unit Complement

1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil

Linear Driver Excursion

17 mm peak to peak

Amplifier Output

220 W

Amplifier Classification

Class D with high current Switch mode power supply (SMPSU)

Phase Control

0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment

2nd order (12 dB/Octave), from 40 Hz to 120 Hz

Equalisation DSP

3 pre-set modes: Music, Movie, Impact

Auto Sensing

Line Level >3mV. Auto Standby feature after 20 mins

Audio Input/Outputs

LFE unbalanced input RCA
Stereo unbalanced inputs RCA

Input Impedance

20 kOhms input impedance

12 V Trigger

3.5 mm mono mini-jack. 6 V threshold

Electrical Certifications

CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)

Mains Input Voltage

100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)

Power Consumption

Maximum 300 W, Standby <0.5 W (ErP compliance)

Fuse Type

20 mm T4AL 250 VAC

External Dimensions (Including Amp, Drivers and Terminals (H x W x D))

321 x 321 x 364 mm (125/8 x 125/8 x 145/16")

External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))

366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")

Weight (unpacked)

13.4 kg (29 lb 9 oz)

Sold As

Single Unit
