The Marantz AMP 10 is a 16-channel power amplifier in the Marantz CINEMA Series, made in Shirakawa, Japan. Marantz lists 200 watts per channel, custom Class D amplifiers, refined HDAM-SA2 technology and selectable output modes.

Marantz describes the AMP 10 as a master reference-level amplifier that combines very high power output with a high channel count for home theatre.

Channels

Power

200W per channel (8Ω, 2ch drive)

Bridged (BTL)

400W (8Ω, 2ch drive)

Amplification

Custom Class D with HDAM-SA2

Inputs

16ch balanced and unbalanced

Made in

Shirakawa, Japan

Why you will love it

16 channels of power

Marantz lists 16 power amplifiers, each rated at 200W into 8Ω (1kHz, 0.05%, 2 channel drive). Into 4Ω, it lists 400W with two channels driven.

It also lists 200W into 8Ω with five channels driven (1kHz, 0.7%).

Custom Class D and HDAM-SA2

Marantz says it developed custom Class D amplifiers and refined its own HDAM-SA2 technology for the AMP 10.

It adds that its Sound Master tuned the amplifier with its proprietary HDAM circuitry.

Selectable output modes

Marantz lists Bi-Amp drive and BTL (bridged) drive. In BTL mode it lists 400W into 8Ω (1kHz, 0.05%, 2 channel drive).

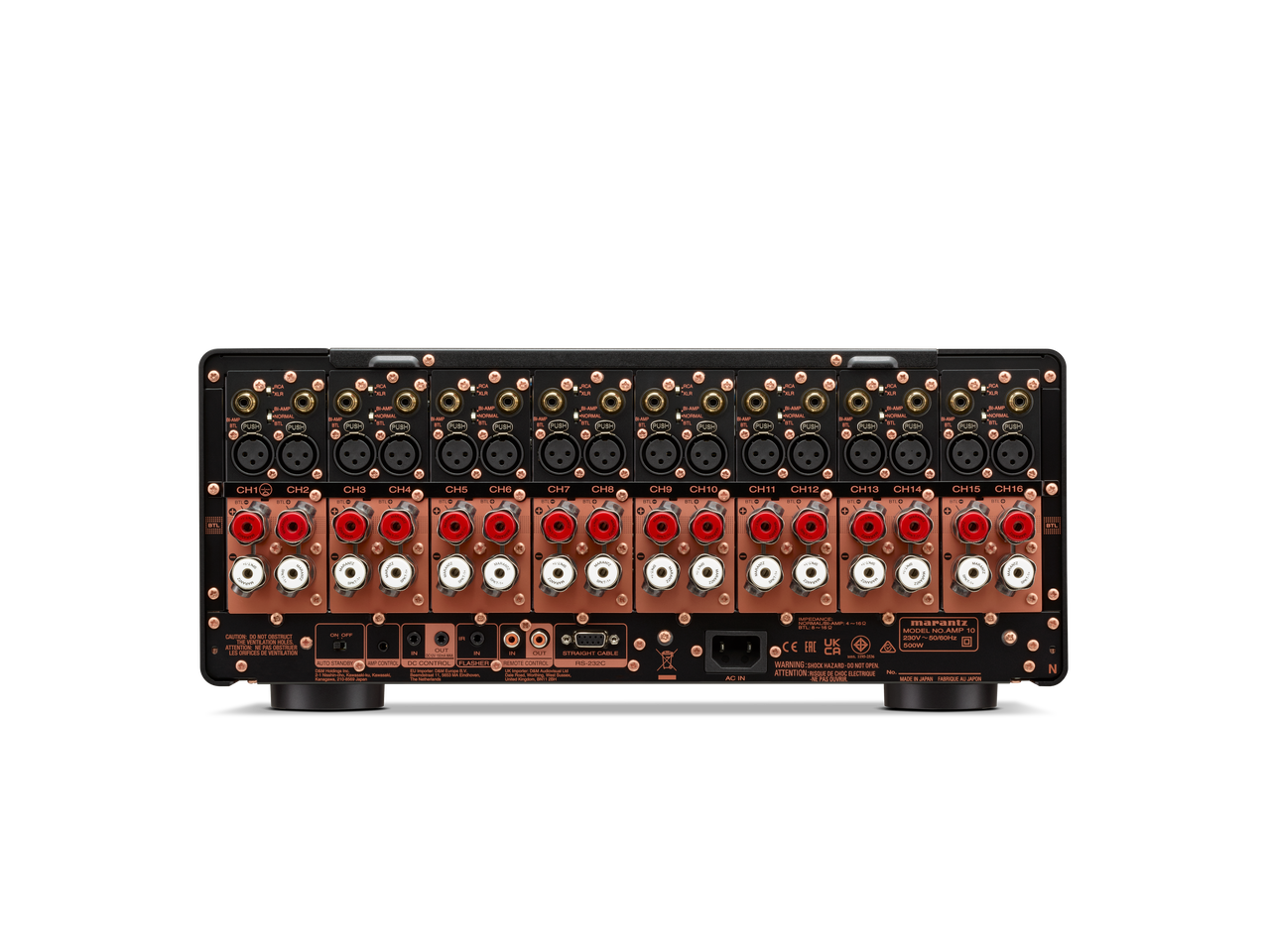

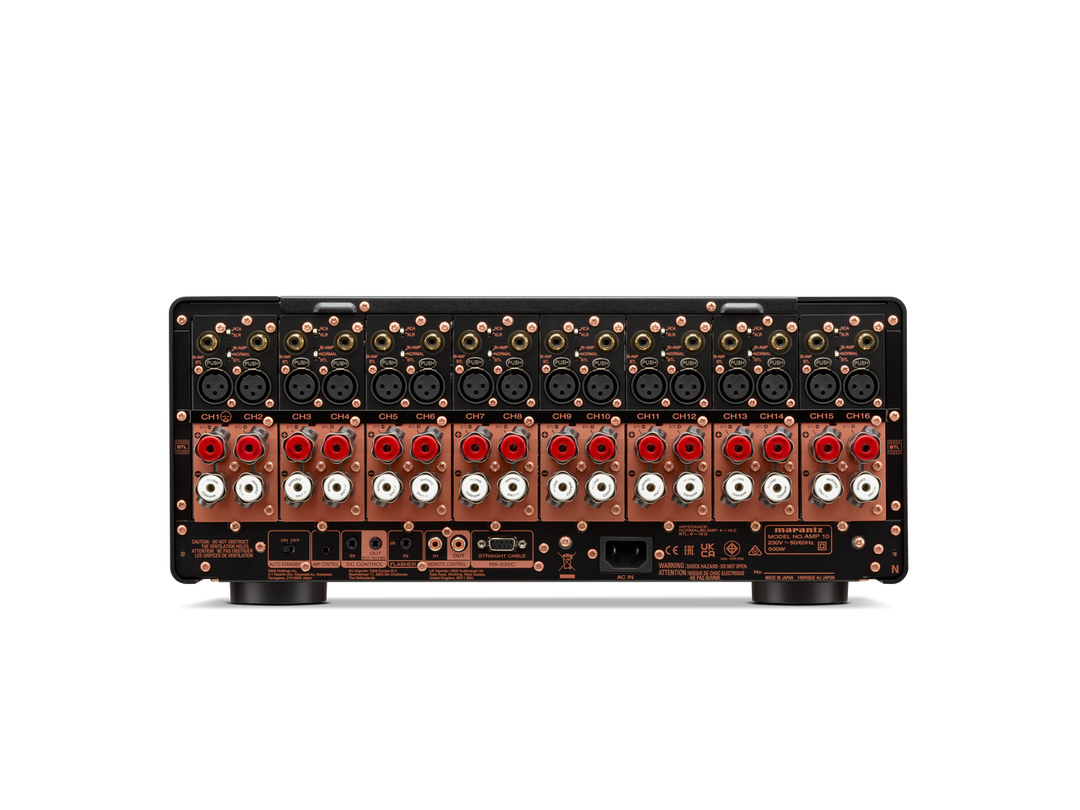

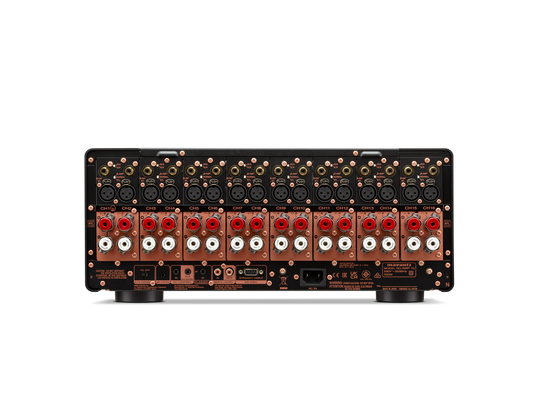

Marantz AMP 10 rear panel with 16 pairs of speaker terminals

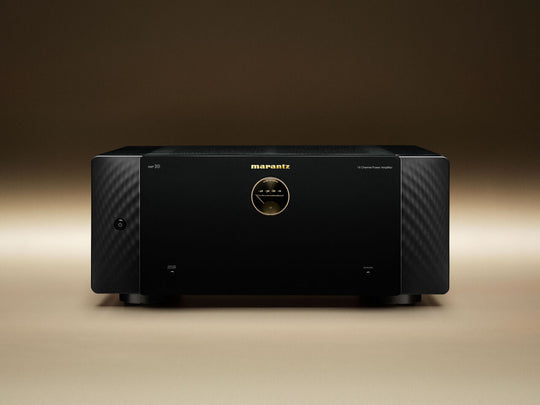

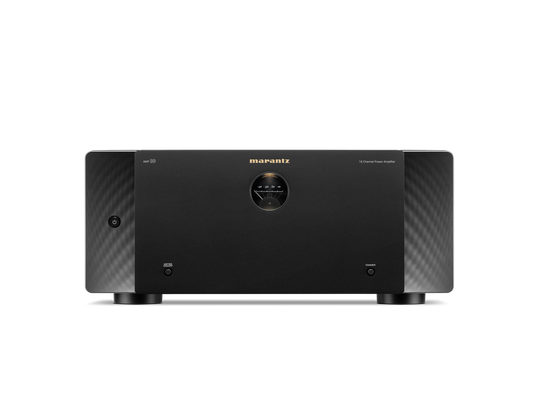

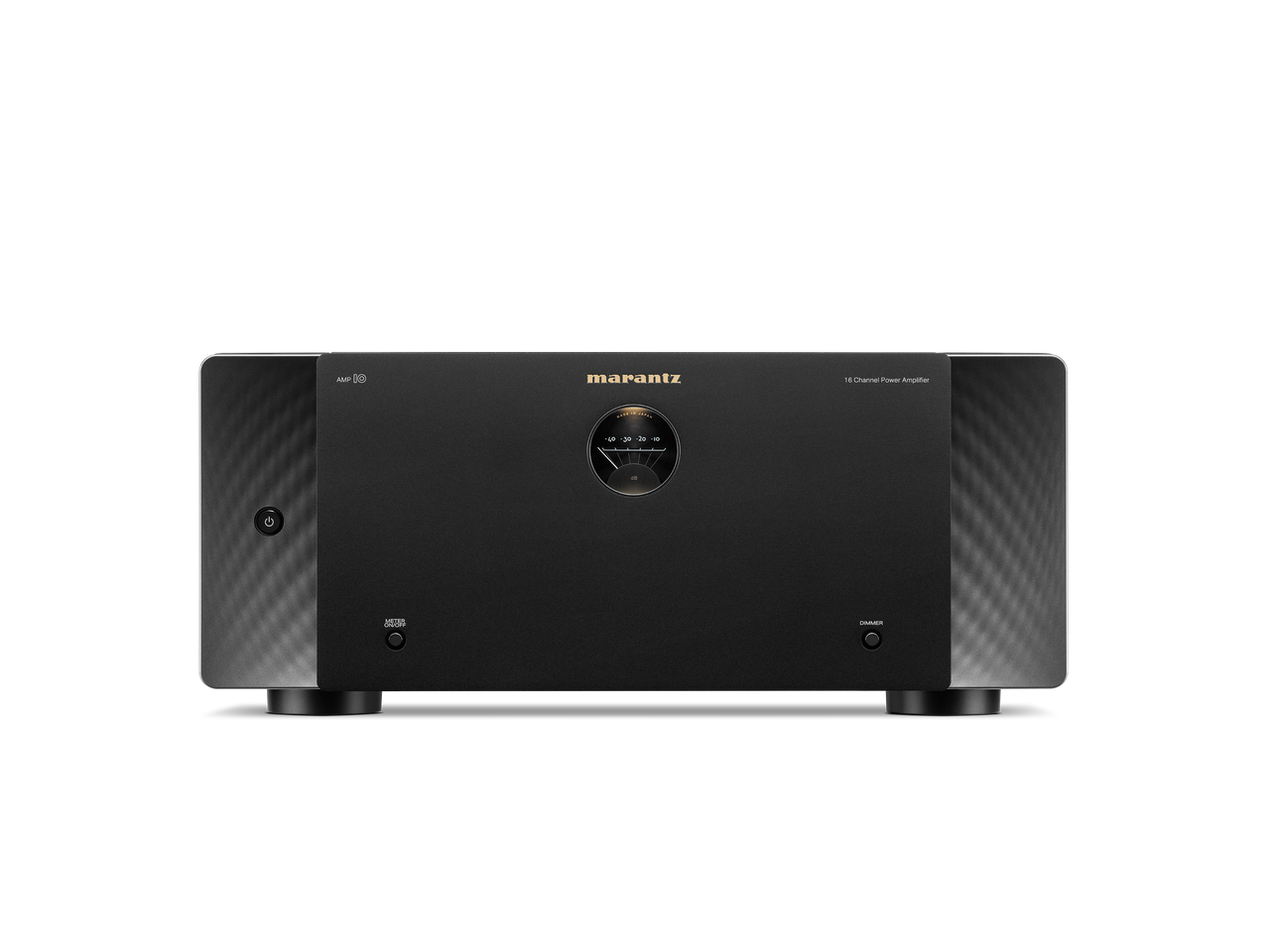

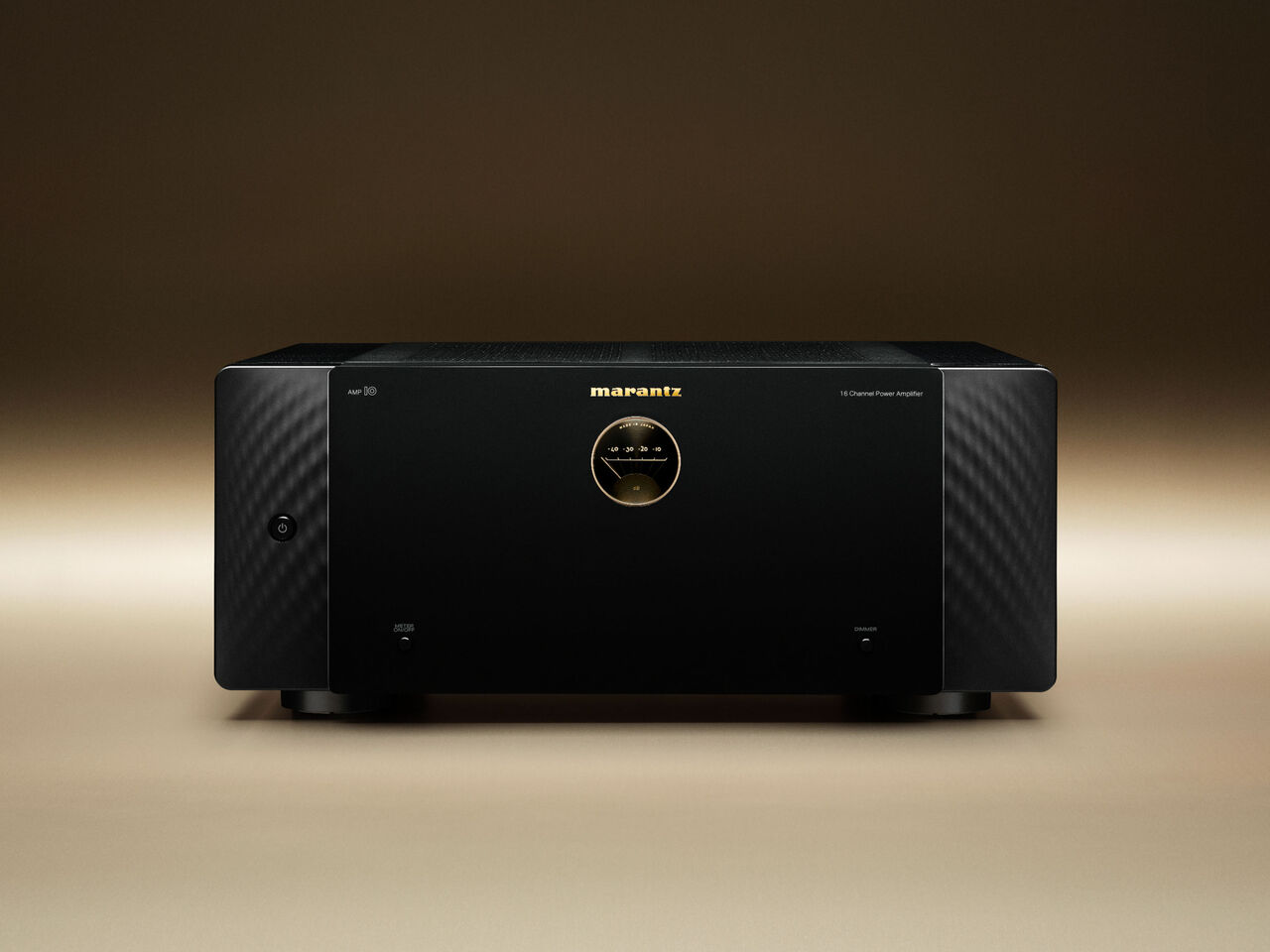

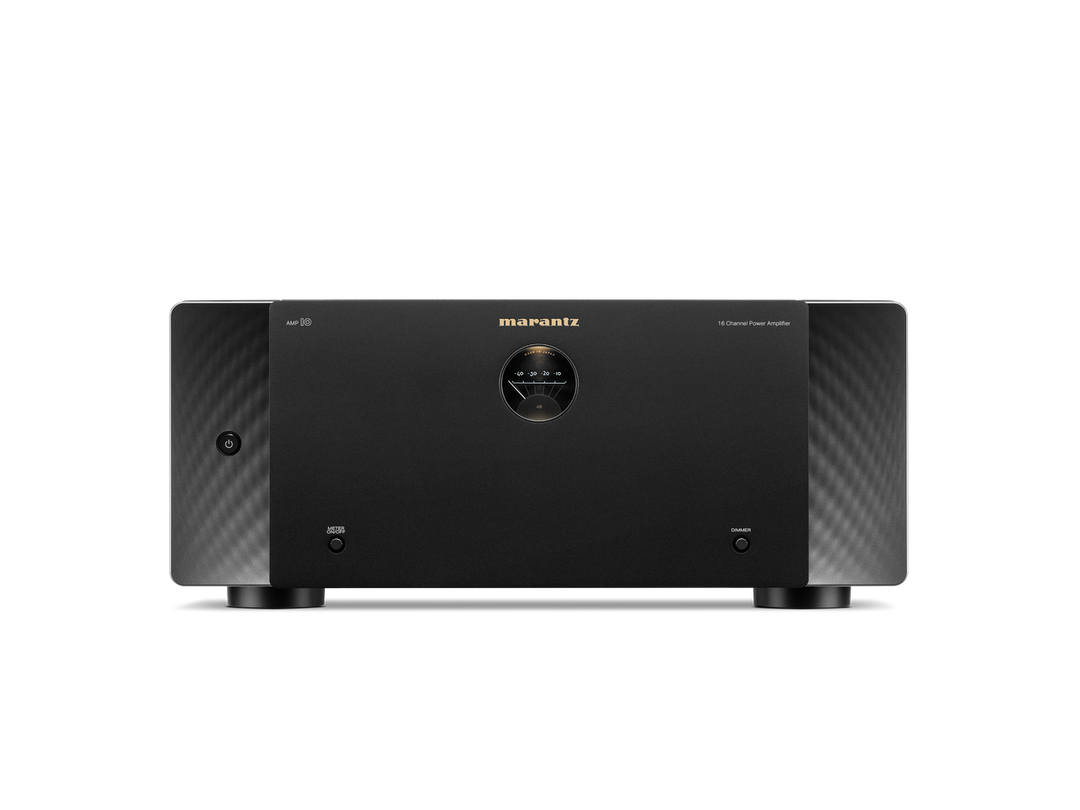

Front of the Marantz AMP 10 with its porthole level meter

Design

Marantz says the AMP 10 has its iconic porthole level meter, premium materials and subtle sidelights that illuminate the front panel.

The chassis is copper plated and the front panel is metal, according to Marantz.

Control and connections

Marantz lists RS-232C control, an IR flasher input, Marantz Remote Bus, and one DC trigger input and one output. It lists IP control, web control and app control as not available.

The amplifier has 16 speaker terminals (SPKT-1+) and a 16-channel input, with a selector switch for balanced or unbalanced use. A speaker terminal wrench is included.

Is it right for you?

A great fit if you…

Are building a large home cinema with many channels, for example an immersive audio layout
Have a processor with balanced or unbalanced preamp outputs
Want one amplifier chassis for up to 16 channels, or bridged channels for more power

Worth knowing

It is a power amplifier only, so it needs an AV processor or preamplifier
Marantz lists no network, USB or RS-232C firmware update
Marantz lists a weight of 43.7 lb (about 19.8 kg), so plan your rack

Build your system

The AMP 10 needs a source that provides preamp outputs, such as an AV processor.

Processor: Pair it with the Marantz AV 10 processor.
Other Marantz power amplifiers: See the Marantz AMP 20 12-channel power amplifier or browse power amplifiers.
Speakers: Browse floor-standing speakers and in-ceiling speakers.
Subwoofers: Add bass with a subwoofer.

Specifications

Amplifier

Number of power amps	16
Power output (8Ω, 1kHz, 0.05%, 2ch drive)	200W normal / 400W BTL
Power output (4Ω, 1kHz, 0.7%, 2ch drive)	400W normal
Power output (8Ω, 1kHz, 0.7%, 5ch drive)	200W normal
Amplification	Custom Class D, HDAM-SA2
Output modes	Normal, Bi-Amp drive, BTL drive

Connections

Main amplifier input	Balanced and unbalanced, 16ch (selected by a selector switch)
Speaker terminals	16 x SPKT-1+
Control	RS-232C, IR flasher in, Marantz Remote Bus, DC trigger 1 in / 1 out
IP, web and app control	No
Firmware update by network / USB / RS-232C	No / No / No

General

Front display	Level meter
Front panel	Metal
Chassis	Copper plated
Auto power off	Yes
Power consumption	500W
Standby consumption	0.2W
Dimensions (W x D x H)	17.4 x 19.2 x 7.4 in
Weight	43.7 lb
Made in	Shirakawa, Japan

Specifications from Marantz Australia's AMP 10 product page, checked November 2026. Features and specifications are subject to change without notice.

What is in the box

Main unit
Quick start guide
AC cord
Amp control cable
Remote control cable
Speaker terminal wrench

Questions people ask

How many channels does the AMP 10 have?

16 power amplifier channels, each rated at 200W into 8Ω (1kHz, 0.05%, 2 channel drive).

Does it support bridged (BTL) mode?

Yes. Marantz lists BTL drive, with 400W into 8Ω (1kHz, 0.05%, 2 channel drive).

Does it support bi-amp drive?

Yes. Marantz lists Bi-Amp drive.

What inputs does it have?

A 16-channel main amplifier input, balanced and unbalanced, selected with a selector switch.

Where is it made?

Marantz says it is crafted in Shirakawa, Japan.
