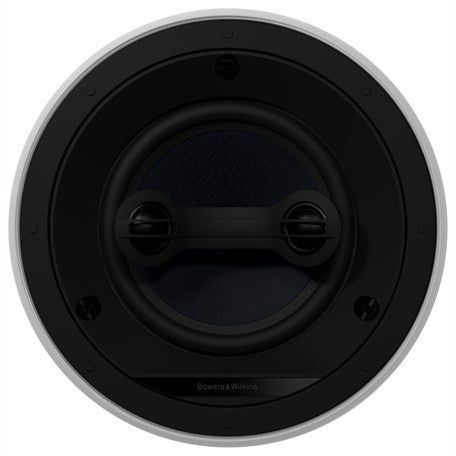

B&W CCM663SR 150mm Stereo 2-way In-Ceiling Speaker

B&W CCM663SR 150mm Stereo 2-way In-Ceiling Speaker

Vendor: B&W
Type: Speakers
Regular price Only  $599.00


  • 2-Way Stereo In-Ceiling Loudspeaker
  • 1x ø150mm (6in)blue Kevlar® cone twin coil bass/midrange
  • 2x ø20mm (1in) offset soft dome tweeters
  • Frequency Range (-6dB): 48Hz – 30kHz
  • Recommended Amp Power: 25 – 80w (per channel)
  • Sensitivity SPL (2.83V, 1m): 83 dB (per channel), 89 dB (both) channels driven)
  • Stereo/surround switch enables use as dual channel stereo or surround speaker
  • Impedance Nominal (min): 8Ω (4Ω)
  • Frame diameter: 240mm (9.5in)
  • Cut-out diameter: 202mm (8in)
  • Depth behind surface: 133mm (5.2in)
  • Optional Square Grille Cover GR66SQ

A high-performance, in-ceiling surround speaker that’s ideal for the surround sound channel in a home theatre set-up, or for bringing stereo sound to rooms where space is limited. The speaker brings together a twin voice-coil 150mm (6in) Kevlar bass/midrange driver with two 25mm (1in) soft dome tweeters. This combines the stereo signal, allowing the use of just one ceiling speaker without the loss of one audio channel. The speaker can be changed from stereo to surround sound mode at the flick of a switch.


Description 2-way dual channel in-ceiling system
Drive Units 2x ��20mm (1in) soft dome tweeter

1x ��150mm (6in) blue Kevlar�� cone bass/midrange
Frequency Range (-6dB) 48Hz ��� 30kHz48Hz ��� 30kHz
Recommended Amp Power 25 ��� 80w (per channel)
Sensitivity SPL (2.83V, 1m) 83dB (per channel)

89dB (both channels driven)
Impedance Nominal (min) 8�� (4��) (per channel)
Frame diameter 240mm (9.5in)
Cut-out diameter 202mm (8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C6
Back Box 6C
