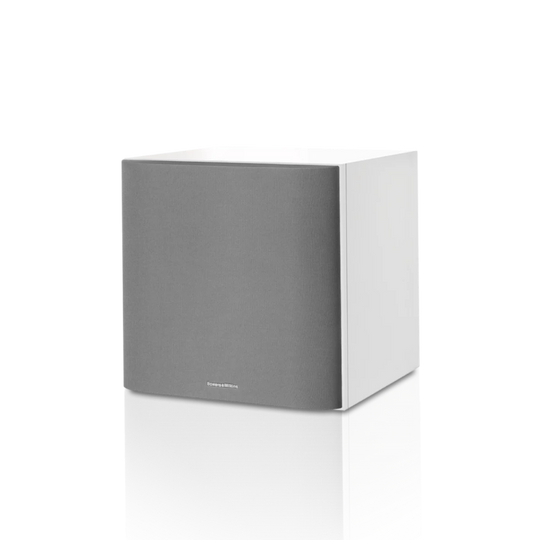

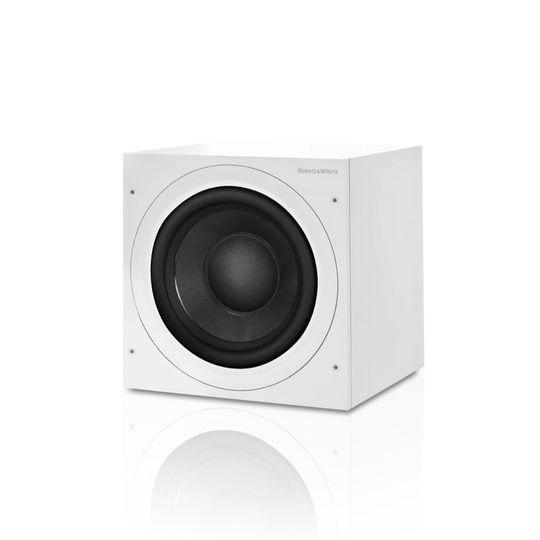

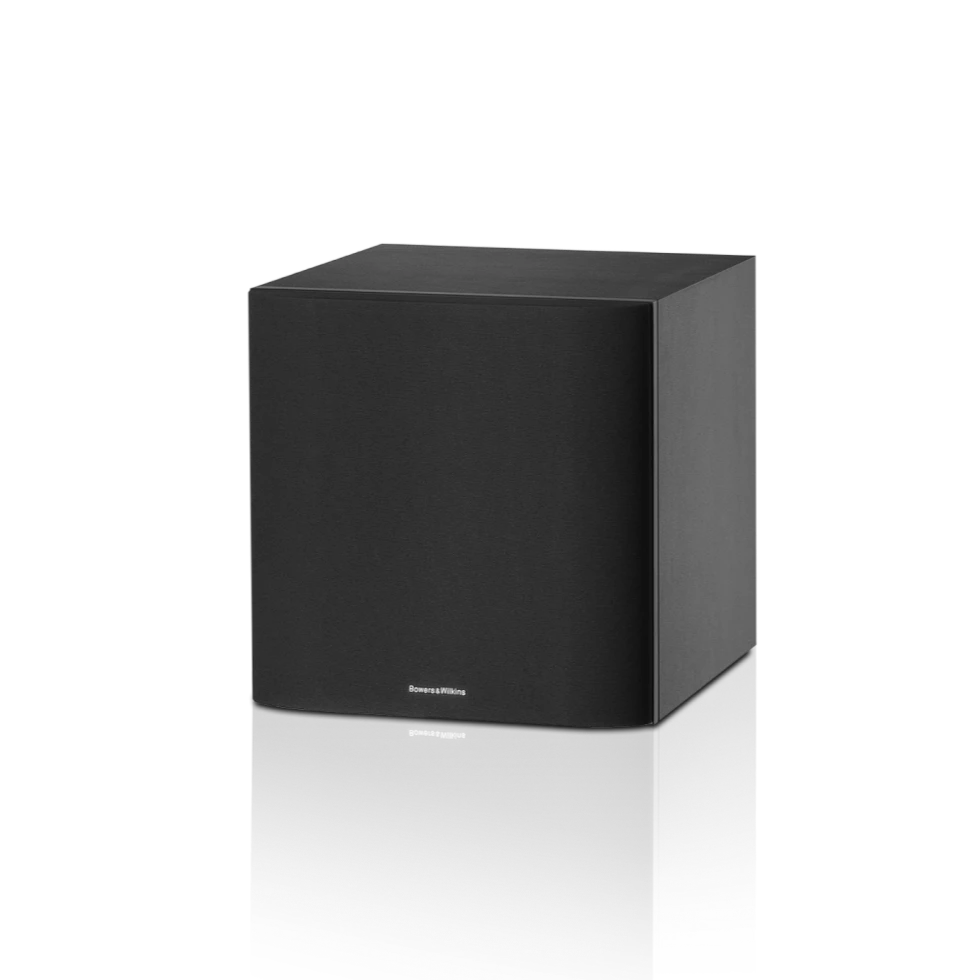

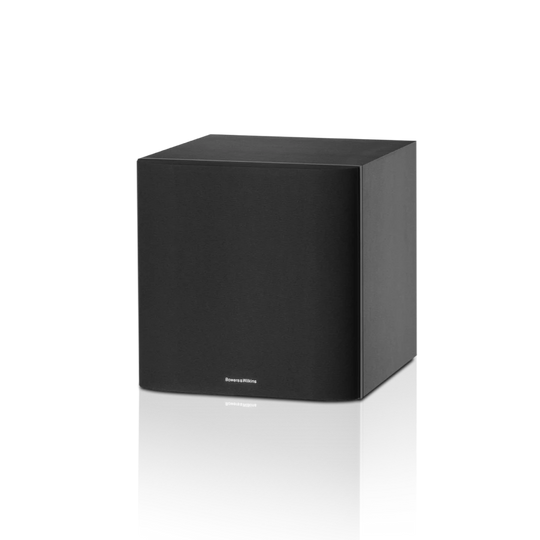

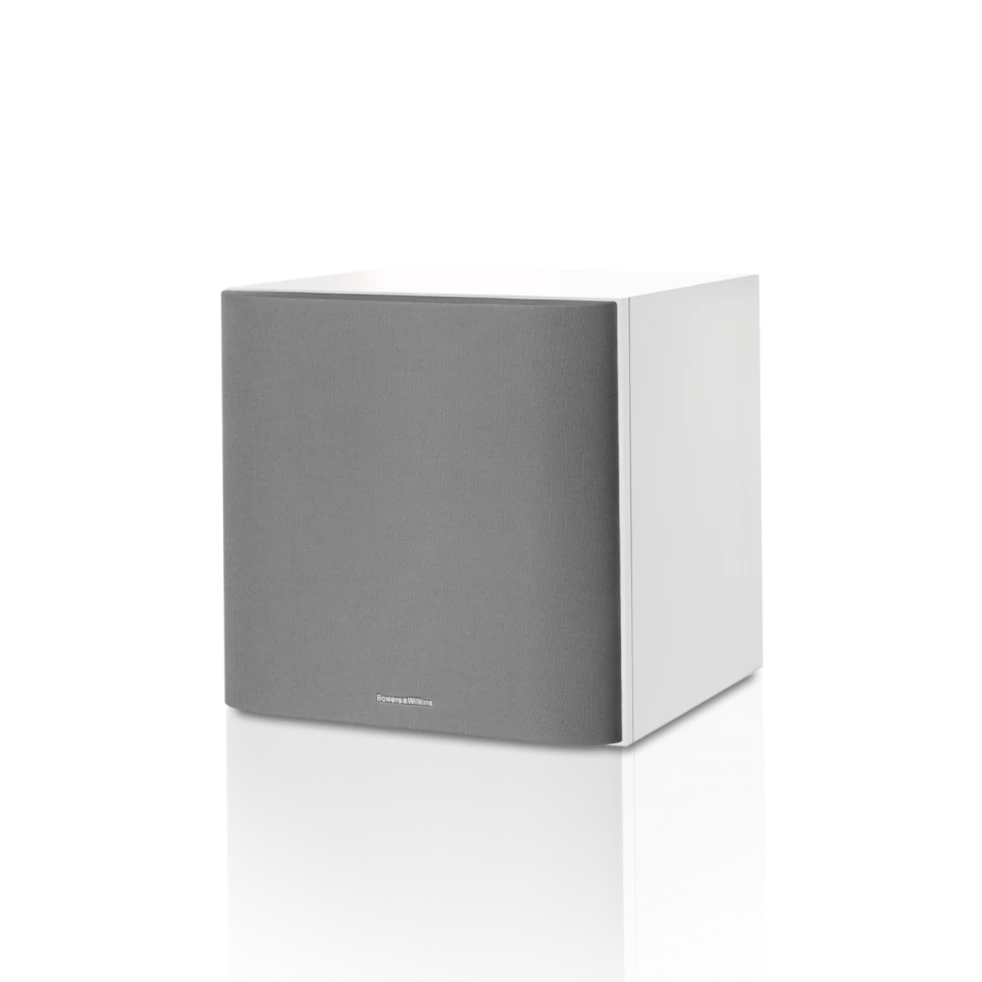

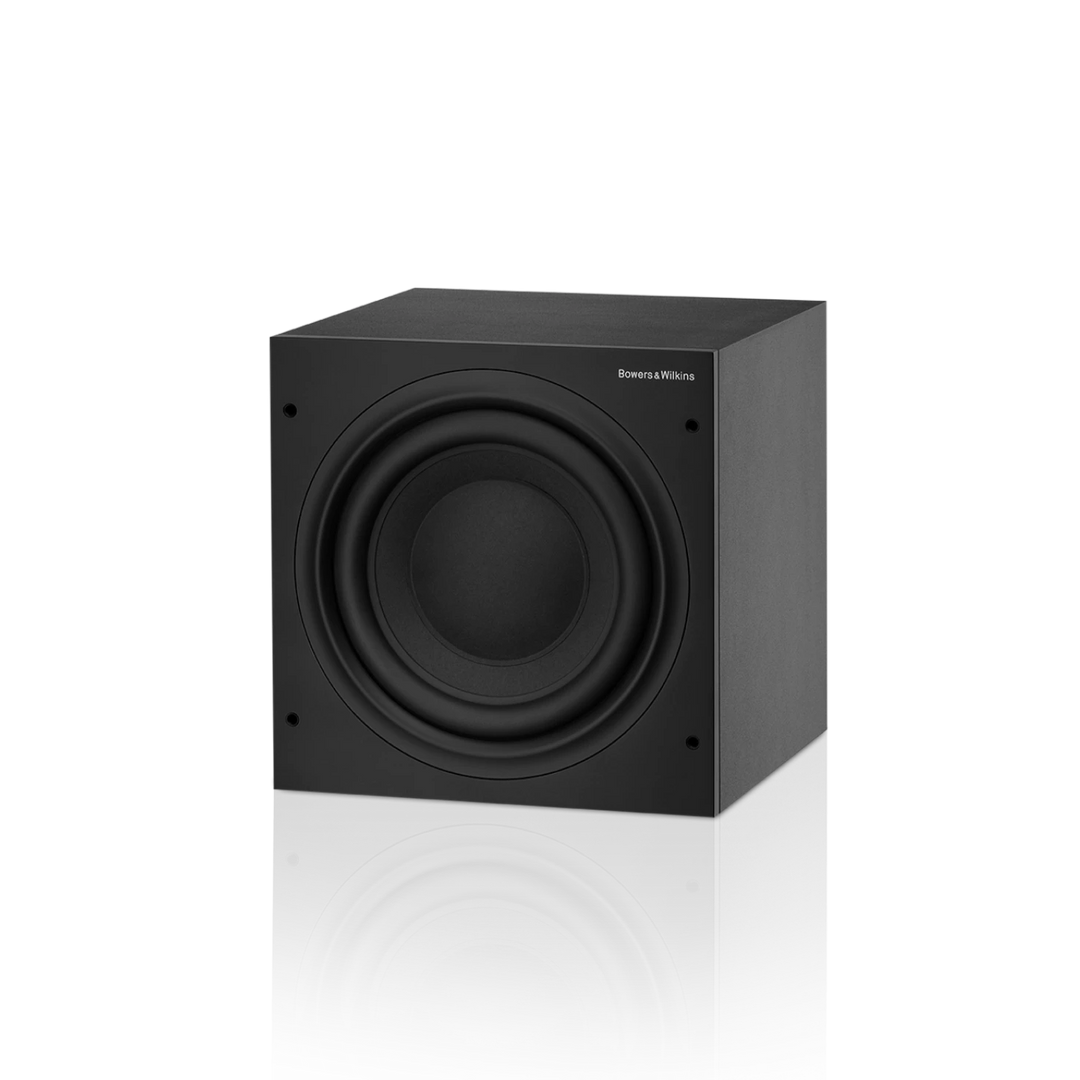

B&W ASW610 Subwoofer

Vendor: B&W
Type: Speakers
Color
Black
White

Sale price
Regular price Now  $999.00
The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
Crossover Tuning
Mushrooms
Description Active closed-box subwoofer system
Drive unit ��250mm (10 in) paper/Kevlar�� cone long-throw
Frequency range -6dB at 20Hz and 25/140Hz adjustable (EQ at A)
Frequency response ��3dB 27Hz ��� 40/140Hz adjustable (EQ at A)
Bass Extension -6dB at 20Hz (position A)

-6dB at 25Hz (position B)

-6dB at 30Hz (position C)
Power output: 200W
Rated power consumption: 40W / 0.5W standby
Input impedance: 33k���
Signal / noise: >90dB
Functions: Input level (line in)

Input level (speaker in)

Low-pass filter bypass

Bass extension

Bass roll-off alignment

Auto sense on/standby

Phase switch
Inputs: Line In (RCA Phono)

Speaker in (Binding post)

12v trigger (3.5mm jack)

Low-pass filter

Active 4th-order, variable cut-off frequency
Dimensions Height: 310mm (12.2 in) not including feet

Width: 310mm (12.2 in)

Depth: 375mm (14.8 in) including grille and controls
Net weight 12.5kg (27.6 lb)
Finishes Matte Black
