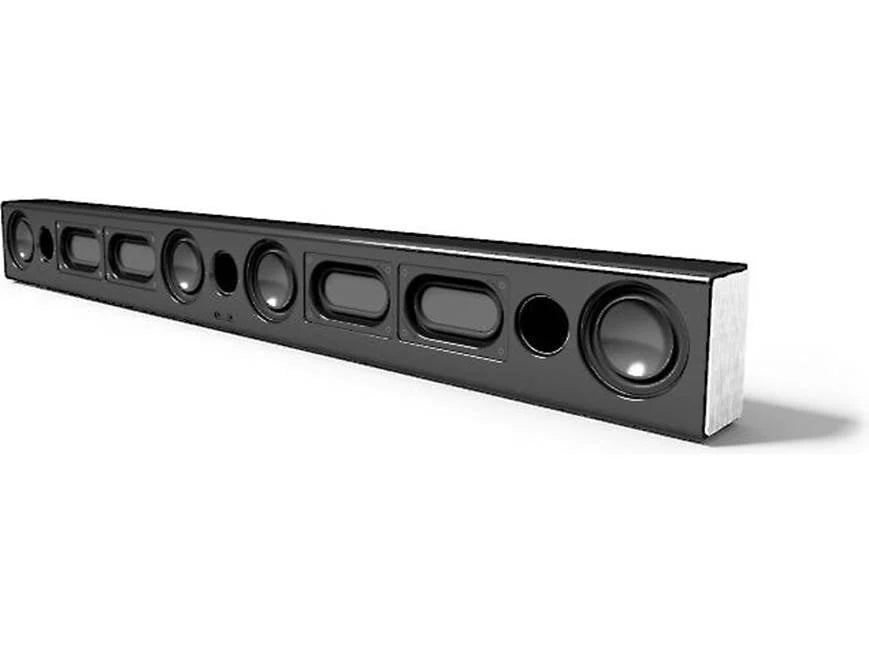

The SB-3 is custom-built for screen sizes above 60 inches and features three separate driver arrays for left, centre, and right channels in a single cabinet.

Features at a glance:
4 x 4" (100 mm) C-CAM cone bass/mid driver  |  3 x 1" (25 mm) C-CAM Gold Dome tweeter  |  Three separate driver arrays  |  Optional dedicated wall bracket  |  Integrated Silicon feet Sealed  |  Auxiliary Bass Reflex (ABR) per channel



Setting the bar for TV sound

Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators), and a single C-CAM tweeter in the centre section provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter, and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full-range audio way beyond the limits of any TV's sound system.



Specifications

Frequency Response (-3 dB)

All Channels: 80 Hz – 30 kHz

Sensitivity (1W@1M)

Left and Right Channels: 84 dB
Centre Channel: 87 dB

Nominal Impedance

8 ohms

Power Handling (RMS)

Left and Right Channels: 40 W
Centre Channel: 80 W

System Power Handling (RMS)

All Channels: 100 (High pass filter set to 100 Hz)

Recommended Amplifier Requirements

All Channels: 30 — 100 W

Crossover Frequency

All Channels: 80 — 120 Hz

Maximum SPL

104 (108.8 all channels driven) dBa

Bass Alignment

Auxiliary Bass Reflex (ABR) Loading

Drive Unit Complement

Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Centre Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions: (H x W x D) (Including Feet)

145 x 1310 x 89 mm (511/16 x 519/16 x 31/2")

External Dimensions (Including Bracket (H x W x D))

145 x 1310 x 100 mm (511/16 x 519/16 x 315/16")

Weight

9.1 kg (20 lb)

Sold As

Single Unit
