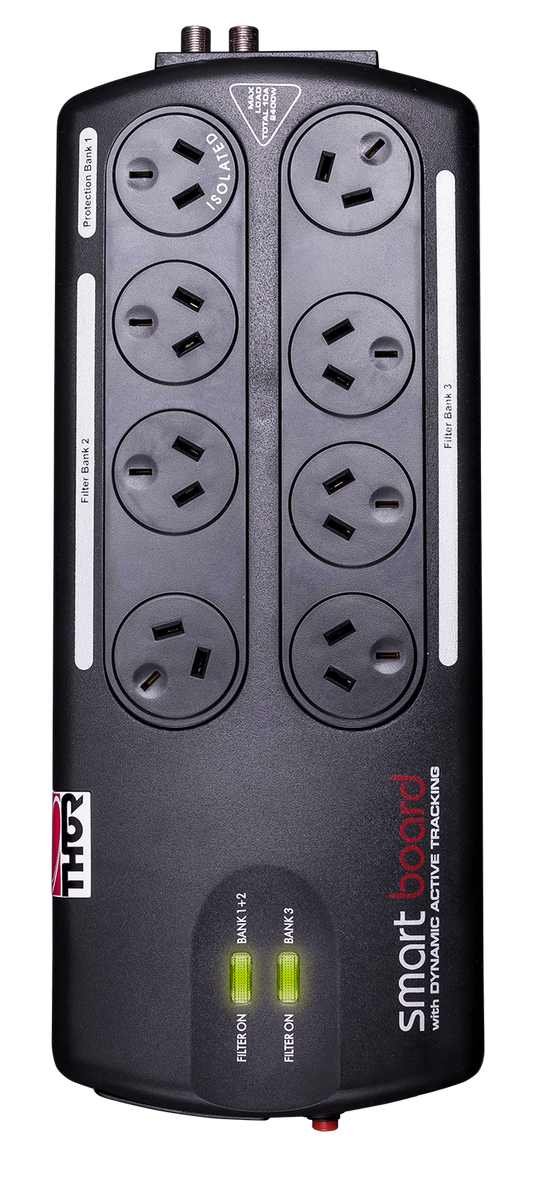

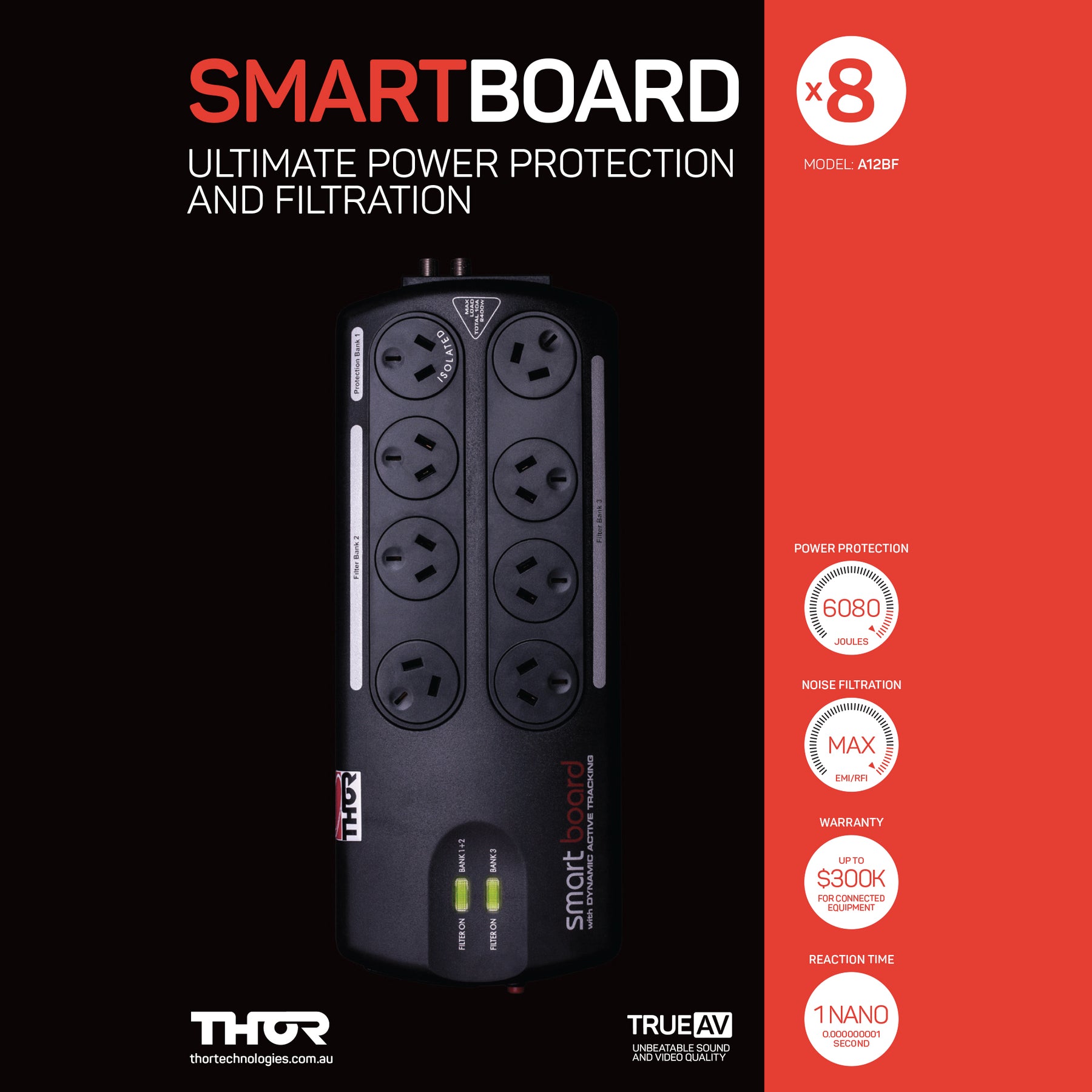

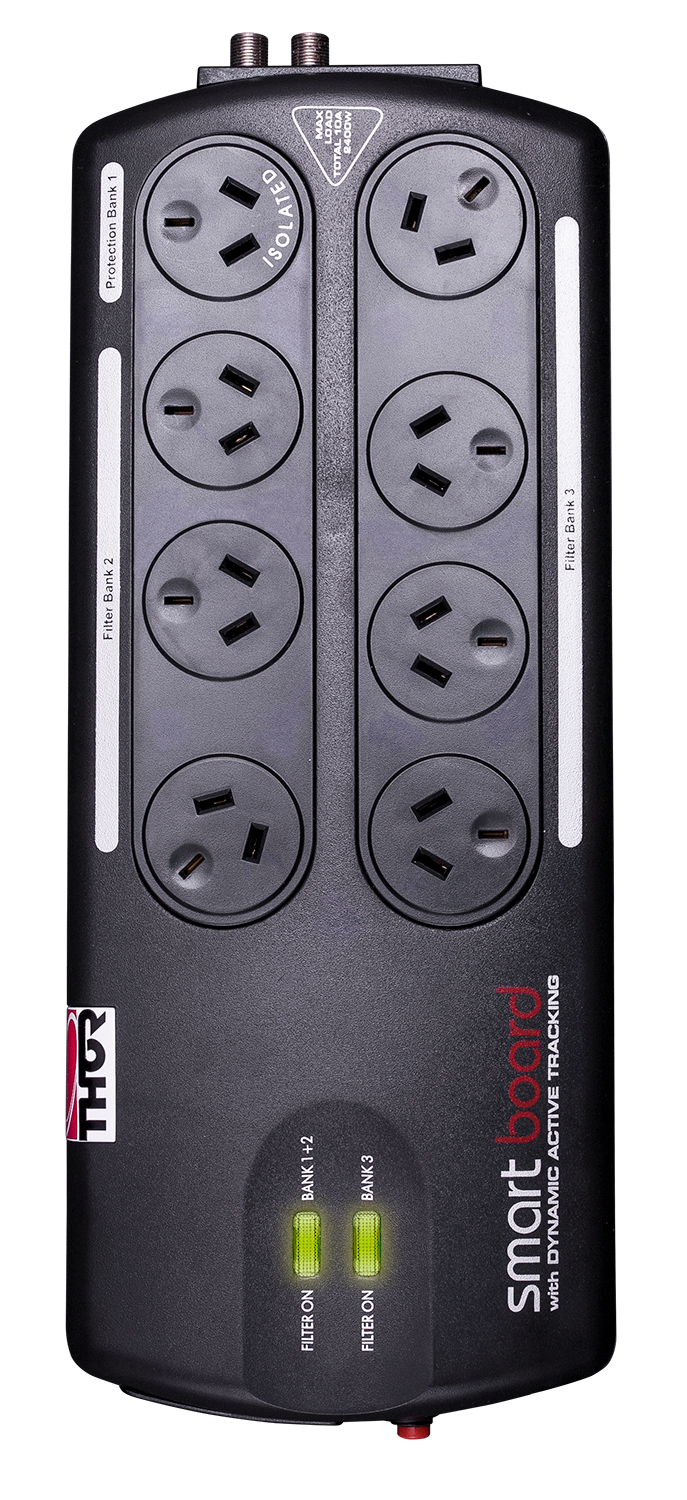

Thor A12BF – SMART BOARD 8

$349.00

  • 240/V AC 50/Hz Supply Voltage
  • 6080 Joules Maximum energy dissipation
  • 8 outlets protects on all 3 conductors

Description


THE ULTIMATE PROTECTION SmartBoard Smart Series with unique Dynamic Active Tracking™ is the most comprehensive and advanced solution to protect your electronic equipment.

  1. AV/TV connection (in and out)
  2. Bank 1 (1 outlet): Surge protection only
  3. Bank 2 (3 outlets): Surge protection and filtering
  4. Bank 3 (4 outlets): Surge protection and filtering
  5. Large plug adaptors
  6. RJ 45 data protection (1 in and 2 out)
  7. Resettable safety 10 amp circuit breaker

SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of “cleaning” electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can “clean” unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.

Description

Technical Smarts

  • Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
  • Supply voltage 240/V AC 50/Hz
  • Maximum current rating 10amps/2400 W (VA)
  • Clamping voltage 275VAC
  • Reaction time less than 1 nanosecond
  • Maximum transient spike impulse current 208,000 amps (equivalent to 52,000 amps using UL1449 standard)
  • Maximum energy dissipation 6080 Joules (equivalent to 2050 Joules using UL1449 standard)
  • Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
  • EMI/RFI noise reduction filter type Dynamic Active Tracking™ incorporating 38 separate protection components in 3 cascading circuits
  • Number of multi-stage filter banks: 2
  • Number of isolated banks: 3
  • Number of dedicated outlets: 4+3+1
  • Total number of protected AC outlets: 8
  • RJ 45 data protection: 1 in and 2 out
  • AV/TV Connection: In and out
  • Cable TV ‘F’ type connection: In and out
  • Earth potential rise protection
  • Earth leakage range less than 1 milli amp
  • Operating conditions: Indoor/AC mains
  • Operating temperatures: -10C/+60C
  • Cable length: 1.8m
  • Model No: A12BF

inside the brain

  • SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
  • There are 5 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 3 x AC Banks (1 x 1 outlet; 1 x 3 outlet; 1 x 4 outlet) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.
