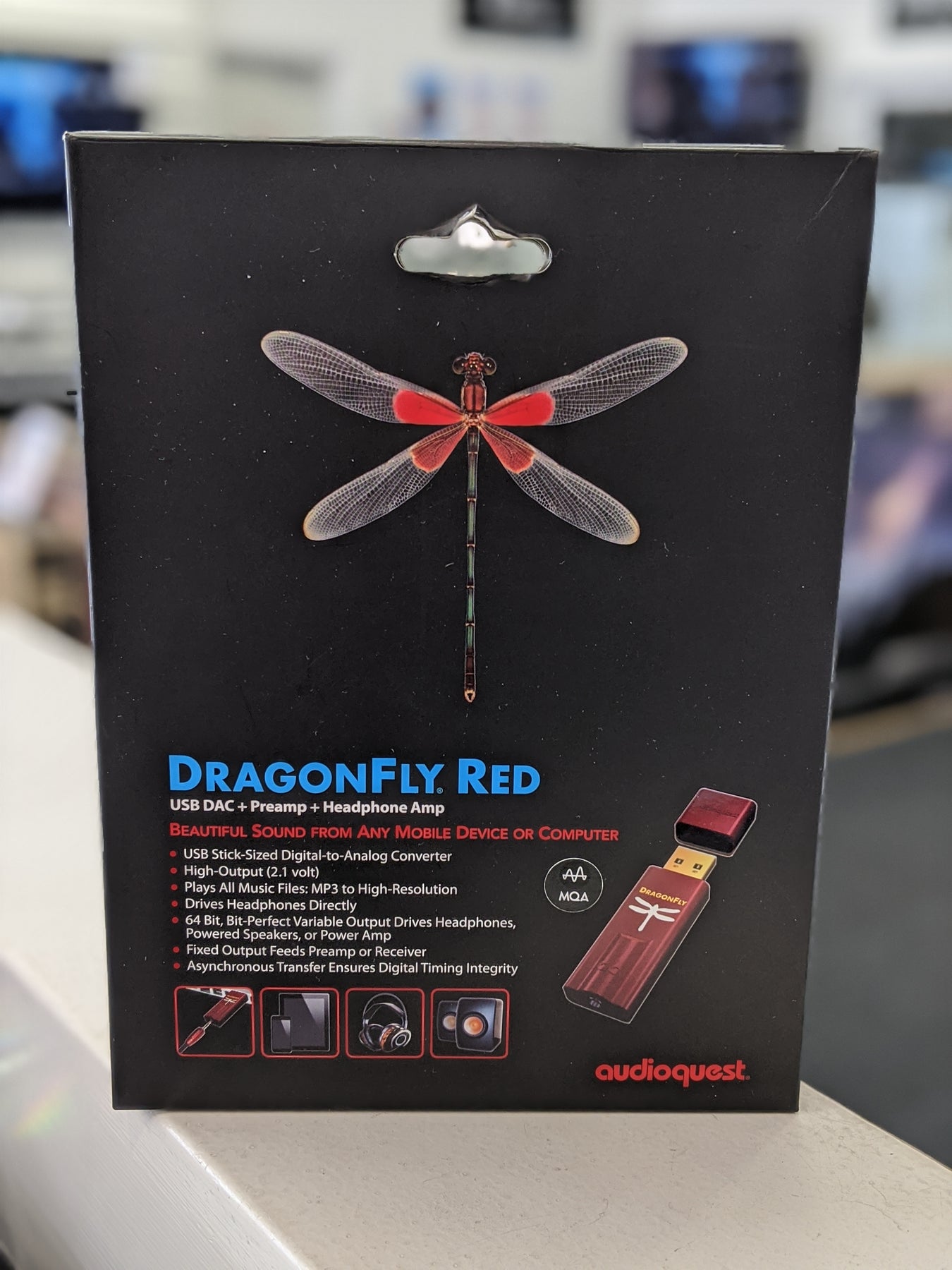

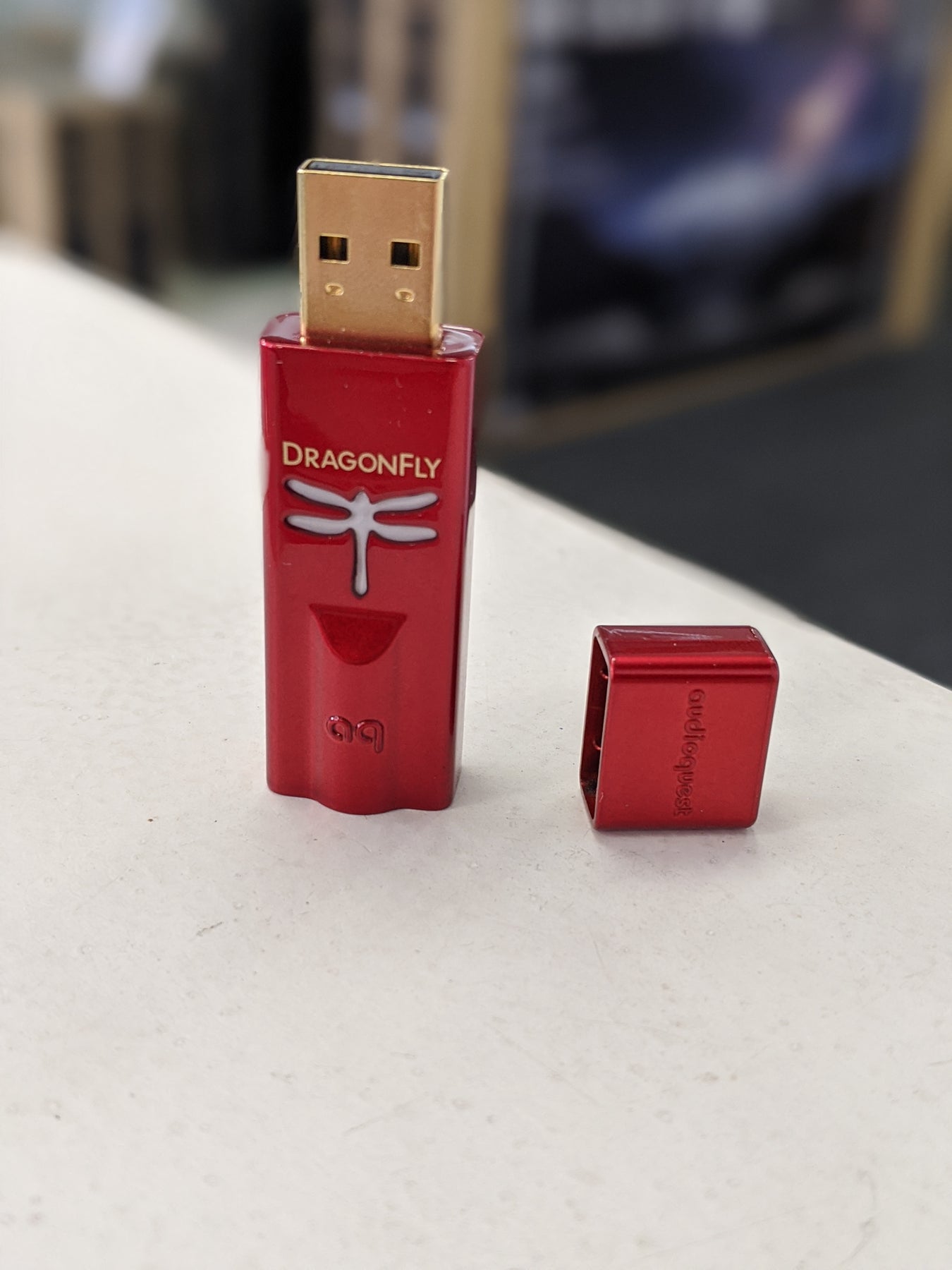

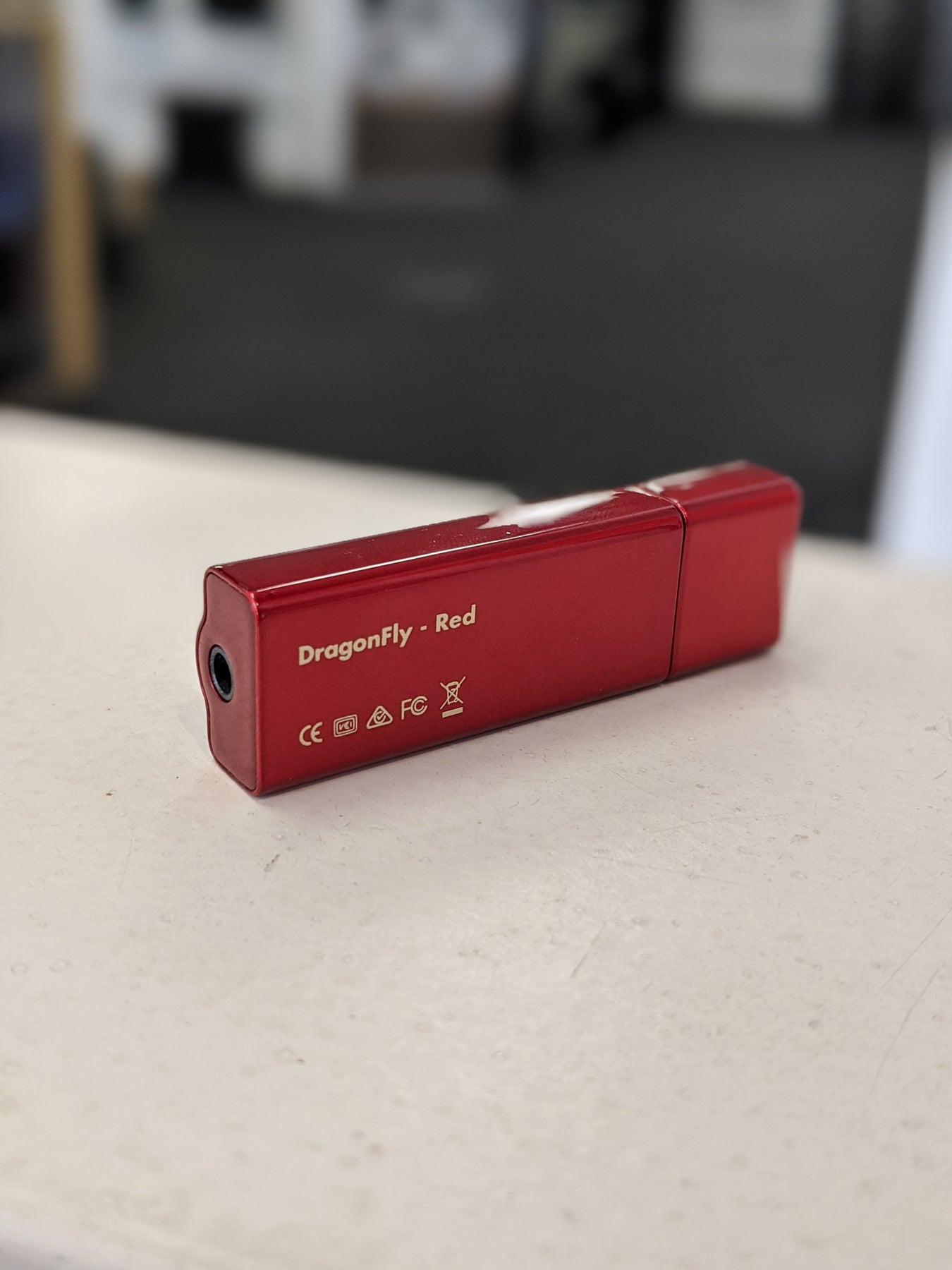

Audioquest Dragonfly Red USB DAC / Headphone Amp

$320.00 $299.00

USB DAC + Preamp + Headphone Amp DRAGONFLYS BLACK AND RED DragonFly Black, the most affordable model of the award-winning DragonFly family, has been praised by Darko.Audio as “the quintessential everyman hi-fi product,” while its more sophisticated sibling, DragonFly Red, combines significantly improved performance with still exceptional value. The ESS 9010 DAC chip in Black and the higher-performance 9016 chip...

Description

USB DAC + Preamp + Headphone Amp

DRAGONFLYS BLACK AND RED

DragonFly Black, the most affordable model of the award-winning DragonFly family, has been praised by Darko.Audio as “the quintessential everyman hi-fi product,” while its more sophisticated sibling, DragonFly Red, combines significantly improved performance with still exceptional value. The ESS 9010 DAC chip in Black and the higher-performance 9016 chip in Red employ minimum-phase filtering for naturally detailed sound.

While DragonFly Black uses a high-quality headphone amp and analog volume control, DragonFly Red includes a more advanced ESS headphone amp and a bit-perfect digital volume control that resides on the 9016 DAC chip itself—a sophisticated implementation that gives Red a unique combination of power and grip over the music. DragonFly Black outputs 1.2 volts—enough power to successfully drive all preamplifier input circuits and a wide range of today’s efficient headphones. With its higher 2.1-volt output, DragonFly Red is compatible with a wider range of headphones, including power-hungry, low-efficiency models.



FIRMWARE UPGRADEABLE

DragonFlys Black, Red, and Cobalt are firmware upgradeable via our free Desktop Device Manager. In today's fast-paced digital world, longevity in a hi-fi component is increasingly rare—at any price. AudioQuest believes that today's digital devices should evolve as technology itself evolves, thereby delivering musical pleasure for many years to come. Our Desktop Device Manager will also allow you to identify your DragonFly's serial number and software version to ensure that the device is up to date. Click here to download the latest Device Manager available for your operating system.

THE REST OF THE DRAGONFLY FLEET:
DRAGONFLYS BLACK AND RED

While the original DragonFly created a new category of portable DAC, its USB power draw made it compatible with computers only. Black and Red answered the call of music lovers everywhere for DragonFlys that could be used with Apple iOS mobile devices and Android smartphones and tablets. These DACs proved for once and for all that convenience and performance need no longer be mutually exclusive.

All current-production DragonFly models incorporate 32-bit ESS Sabre DAC chips.

The DAC chips we’ve selected are remarkably powerful and sophisticated, yet we’ve intentionally limited DragonFly’s processing capabilities to 24-bit/96kHz resolution. This makes using DragonFly as simple as it’s always been: All models are fully compatible with PCs without having to download and install new drivers. Most importantly, DragonFly is designed to honor the music you already own and love. Whether you’re listening to Spotify, YouTube, Tidal, Qobuz, ripped CDs, or state-of-the-art high-resolution files, DragonFly will deliver a more emotionally compelling and enjoyable experience.

STREAM TIDAL MASTERS EVERYWHERE

DragonFlys Black, Red, and Cobalt support Tidal Masters (MQA) playback from iPhones and Android smartphones. MQA's technology folds high-resolution files into smaller files that can be streamed on the go. As MQA Renderers, DragonFlys Black, Red, and Cobalt complete the unfolding process, allowing music lovers to enjoy a wider selection of high-res music. Click here to learn more about how MQA works.

CAPABILITIES

  • Plays all music files: MP3 to MQA and High-Res
  • Compatible with Apple® and Windows® PCs
  • Compatible with iOS devices (requires Apple Camera Adapter/Connection Kit)
  • Compatible with Android devices (requires DragonTail or other USB Adaptor for Android Devices)
  • MQA Rendering
  • Drives headphones directly
  • Fixed output feeds preamp or AV receiver
  • Asynchronous transfer ensures digital timing integrity

SPECIFICATIONS

  • DragonFly Black and Red - Sample rates supported (LED indicator color code): 44.1kHz (Green), 48kHz (Blue), 88.2kHz (Amber), 96kHz (Magenta), MQA (Purple)
  • DragonFly Cobalt - Sample rates supported (LED indicator color code): Standard (Red), 44.1kHz (Green), 48kHz (Blue), 88.2kHz (Yellow), 96kHz (Light Blue), MQA (Purple)
  • Volume Control: Analog Volume Control (Black); 64-position, 64-bit, bit-perfect (Red, Cobalt)
  • Output voltage: 1.2 (Black); 2.1 (Red, Cobalt)
  • Headphone Amp: Texas Instruments TPA6130 (Black); ESS Sabre 9601 (Red, Cobalt)
  • DAC Chip: 32-bit ESS 9010 with minimum-phase fast roll-off filter (Black); 32-bit ESS 9016 with minimum-phase fast roll-off filter (Red); ESS ES9038Q2M with minimum-phase slow roll-off filter for more natural sound (Cobalt)
  • Microcontroller: Microchip PIC32MX (Black, Red); Microchip PIC32MX274 reduces current draw and increases processing speed by 33% over DragonFlys Black and Red (Cobalt)
  • Dimensions: 12mm H x 19mm W x 62mm L (Black, Red); 12mm H x 19mm W by 57mm L (Cobalt)
